New HiFiBerry DAC version: slim 3.5mm phone jack

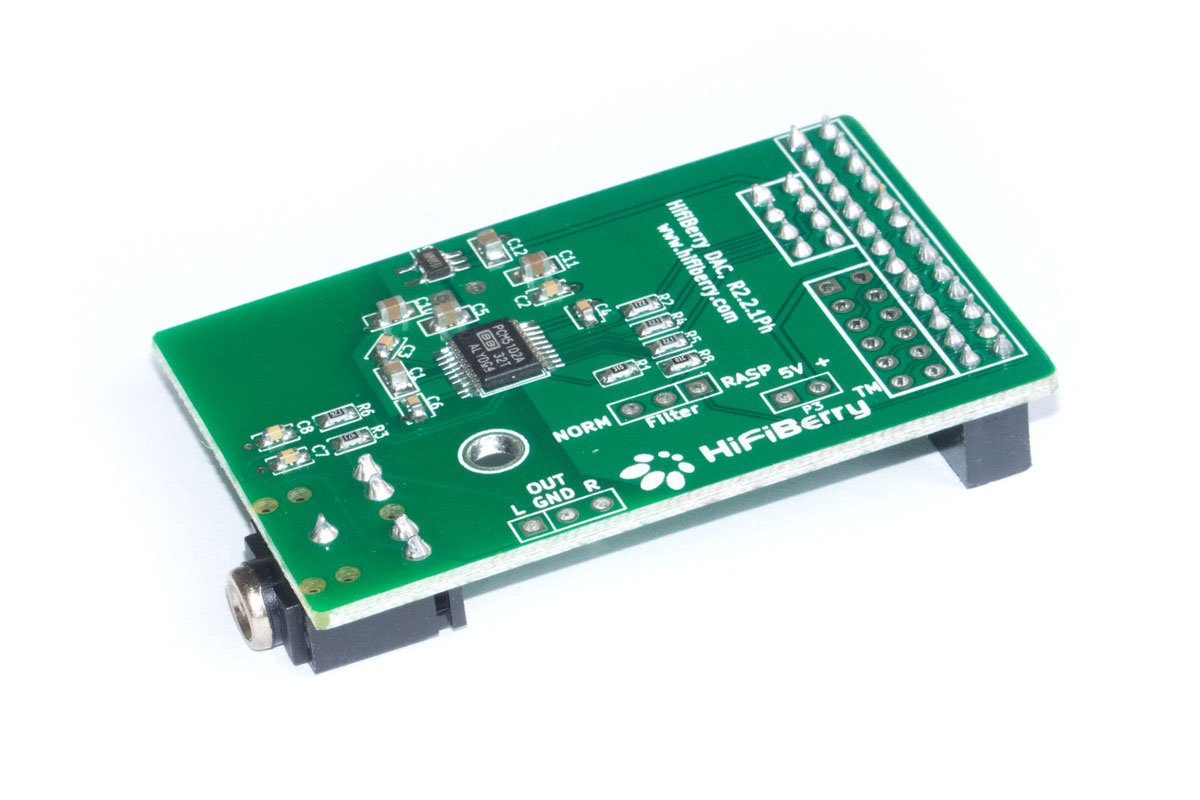

We had some requests to make out HiFiBerry DAC even smaller to fit in existing Raspberry Pi enclosures. Unfortunately the RCA connectors are to big for this scenario. Therefore we created a small version with a 3.5mm phone jack:
dac-phone-1200-3_2

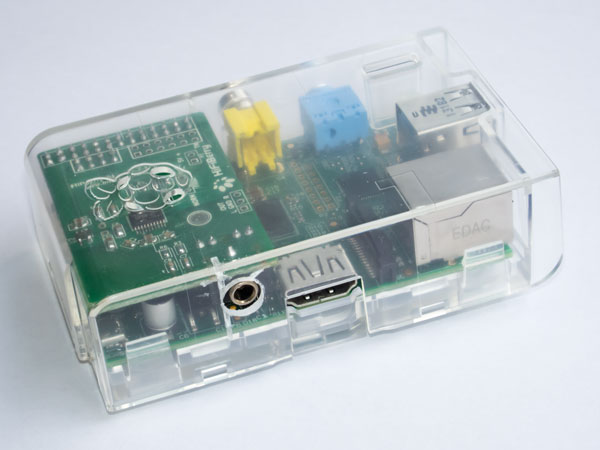

The difference to the existing board: The connector is not mounted from the bottom of the board. At this position, the HiFiBerry DAC will fit in many existing cased. You just have to drill a small hole into as you can see it in the example below.

The new DAC is already on stock and can be ordered.

phone-raspberry

Danielimage-mask
Posted by Daniel on June 16, 2014
